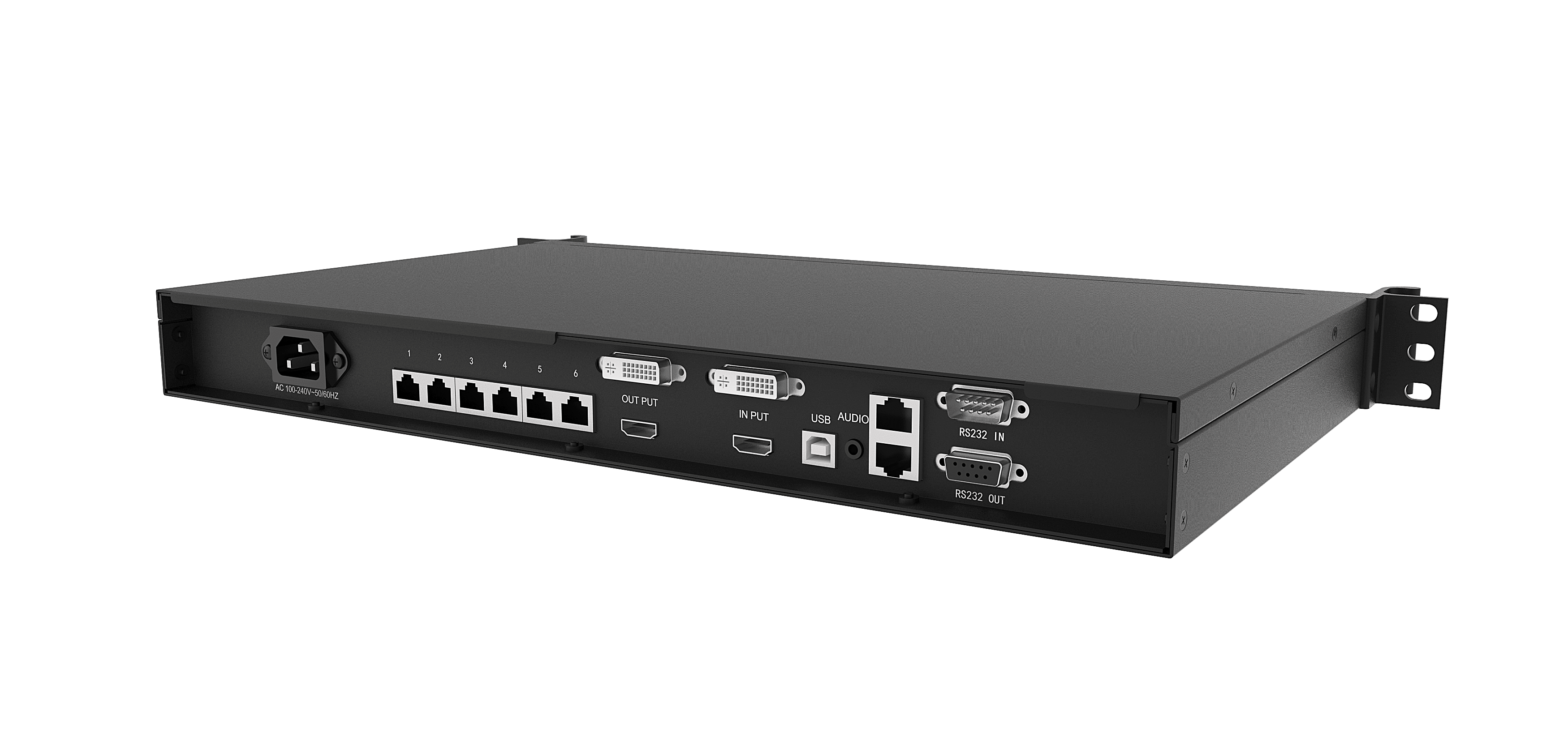

• 1×SL-DVI（IN-OUT）
• 1×HDMI 1.3（IN-OUT）
• 1×AUDIO
• 8bit video source loading capacity of 1920×1200@60Hz.
• 12bit video source loading capacity of 1440×900@60Hz
• Supports 6x 1G network port outputs.
• Supports 1× USB control port
• Supports 2× UART control ports for cascading up to a maximum of 20 units.

• 3 × Input connectors
• 1×SL-DVI (IN-OUT)
• 1×HDMI 1.3 (IN-OUT)
• 1×AUDIO
• 6×Gigabit Ethernet outputs
• 1×Type-B USB control port
• 2×UART control ports
• Used for device cascading. Up to 20 devices can be cascaded.
• Pixel level brightness and chroma calibration.
• Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.n used with the video distributor.
• V-Can (smart control software from NovaStar) supported
• 10 presets
• At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
• EDID management supported
• Supports custom EDID and standard EDID.

• Supports 1× USB control port
• Supports 2× UART control ports for cascading up to a maximum of 20 units.

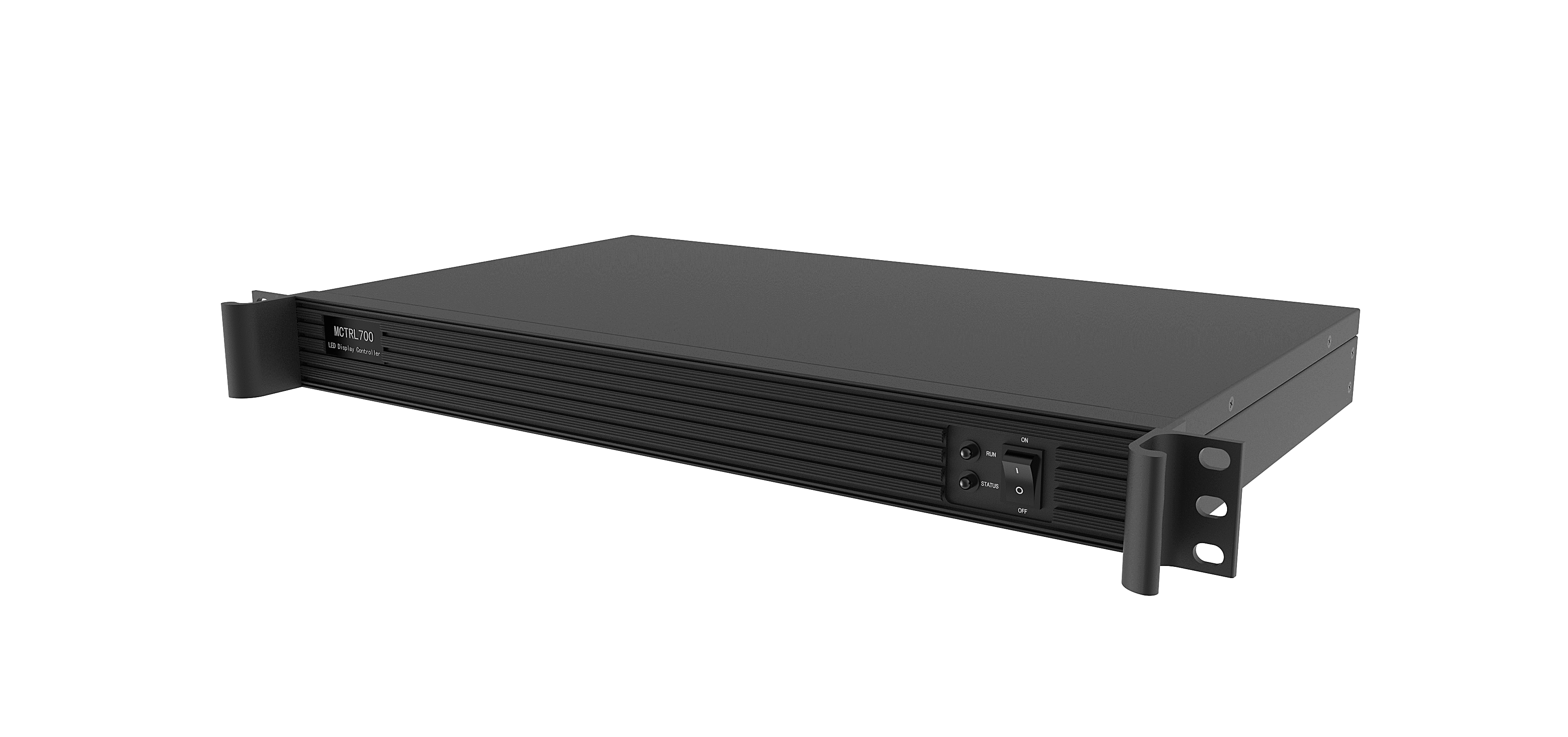

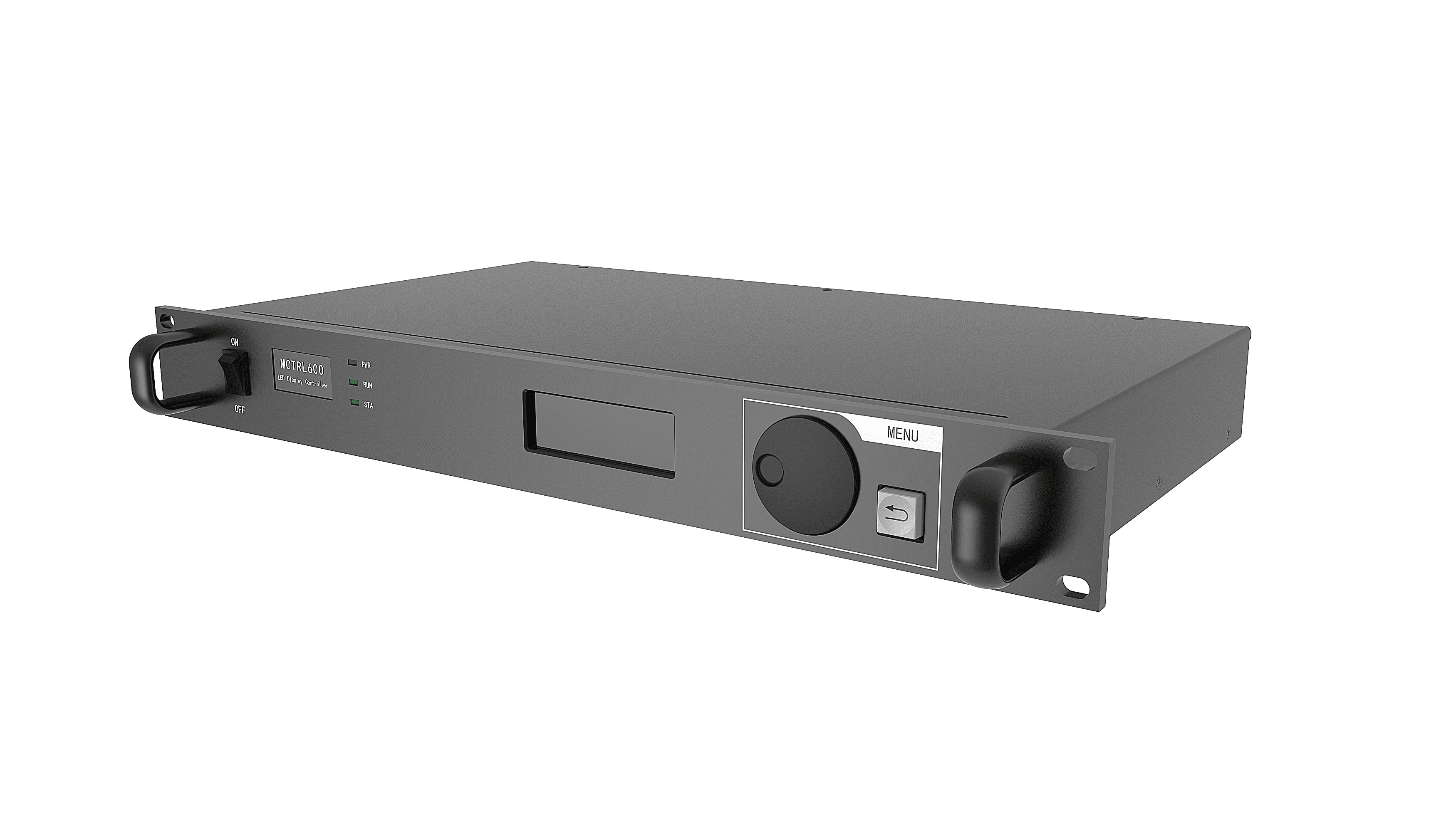

• 1 × DVI input
• 1 × HDMI input
• 4 × Gigabit Ethernet outputs
• Supports the new generation of NovaStar calibration technology, which is fast and efficient.
• Supports resolutions up to 1920×1200@60Hz and downward compatibility.
• Multiple controllers can be cascaded.
• Supports 18-bit grayscale processing and display.
• Manual screen brightness adjustment, which is fast and convenient.
• Quick screen configuration without using a computer.
• Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.
• Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.
• Supports a variety of video formats.

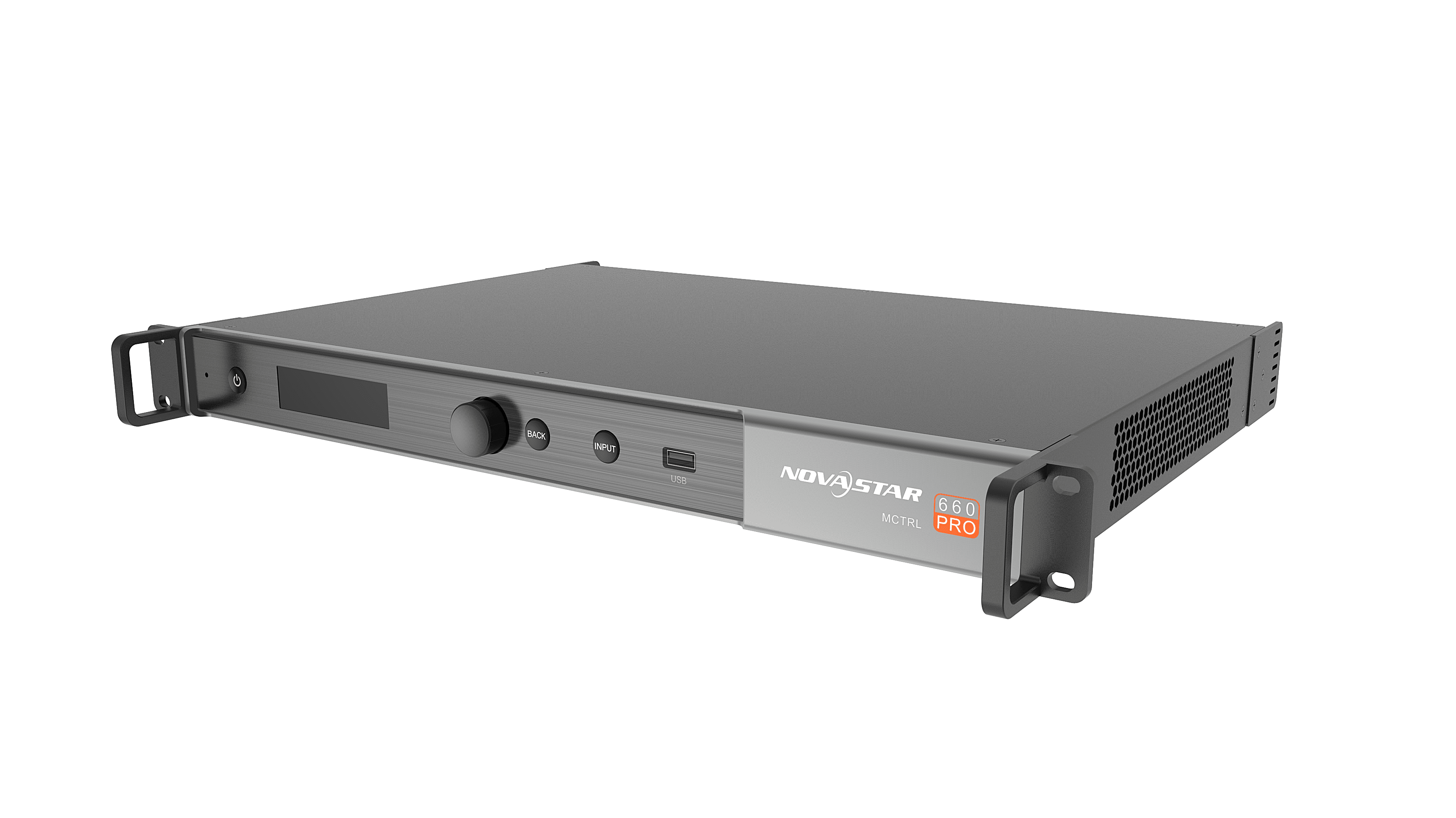

Designed with global rental applications in mind

Easily switch
between a variety of application presets

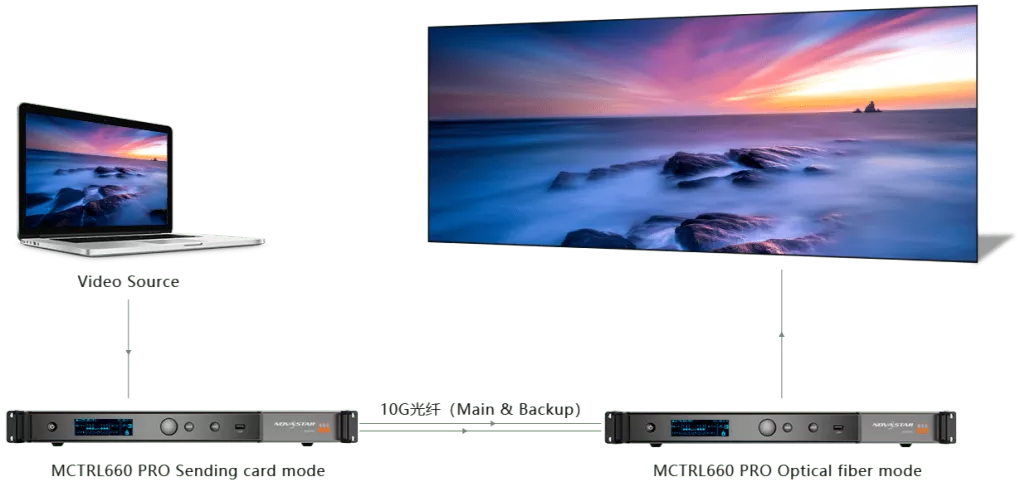

6× 1G network port outputs, and 2x 10G optical outputs. Support for sending/optical transmission mode switching. increasing transmission speed, while making long-distance transmission easy. Saves on operating cost and convenience.

More detailed & realistic image

Supports 10bit/12bit depth, an increase of 4,069 times over the 16.7 million colors provided by 8bit, for a more detailed and realistic image.

Low latency, with less than 1ms delay,
for ultra-smooth synchronized display.

With video source output of less than 1ms, latency is effectively unnoticeable. This ensures high-quality display of content, with no need to worry about the negative influence of latency on a presentation.

Multi-layer protection methods

One-button restore from backup. Support for Web control and input monitoring, to eliminate problems as soon as possible.

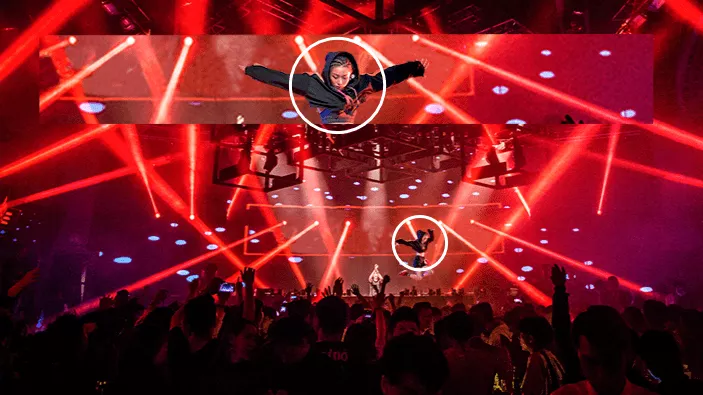

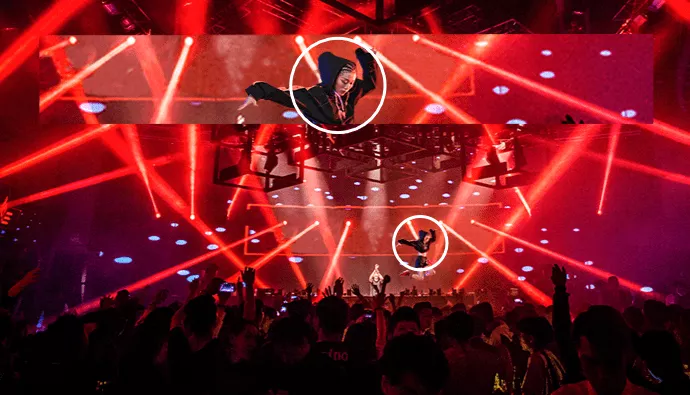

Image mirroring and rotation
provide a creative and flexible stage.

Support for mirroring and rotation of a single or dual ports, allowing a stunning effect with the push of a button.

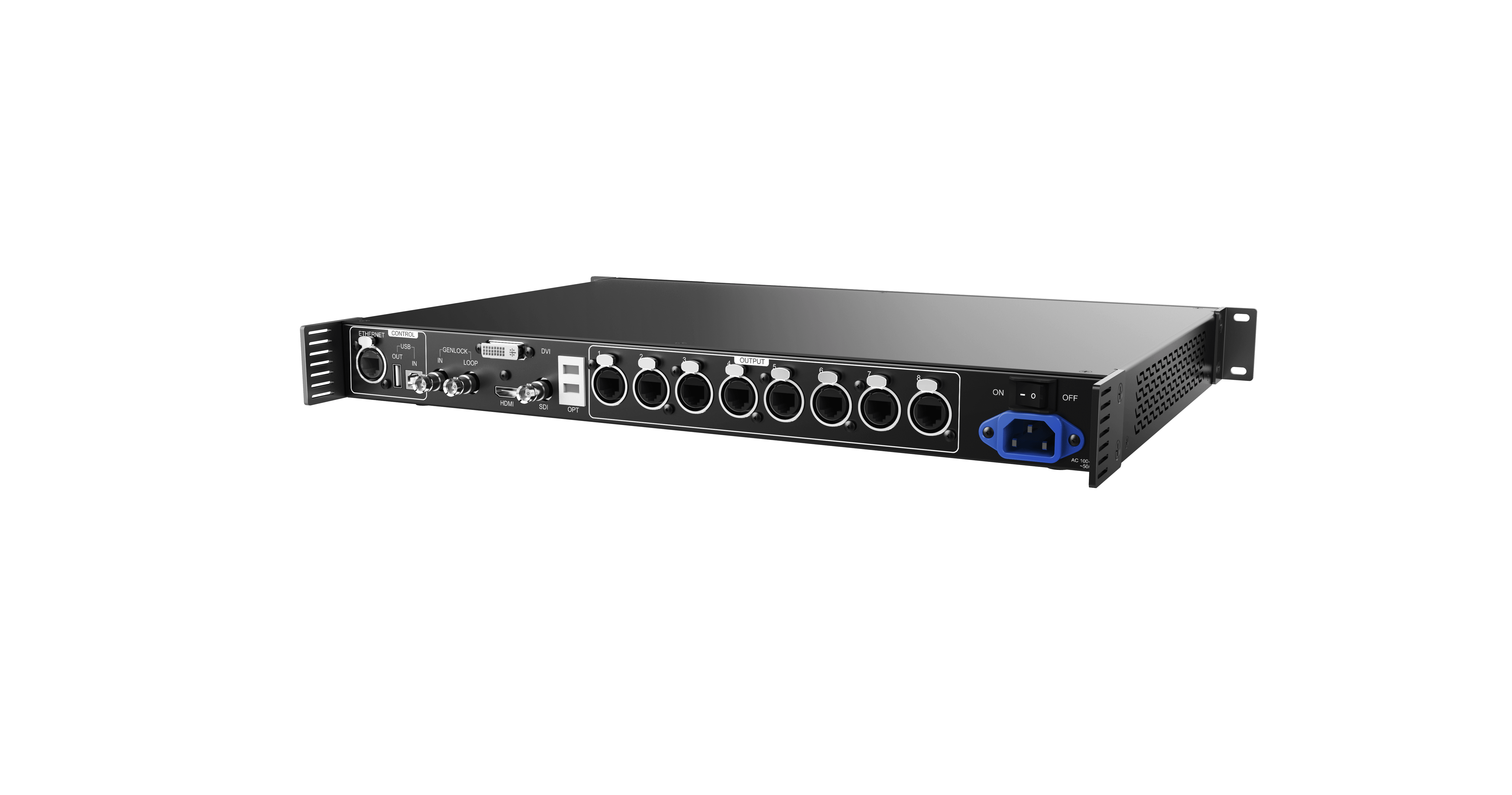

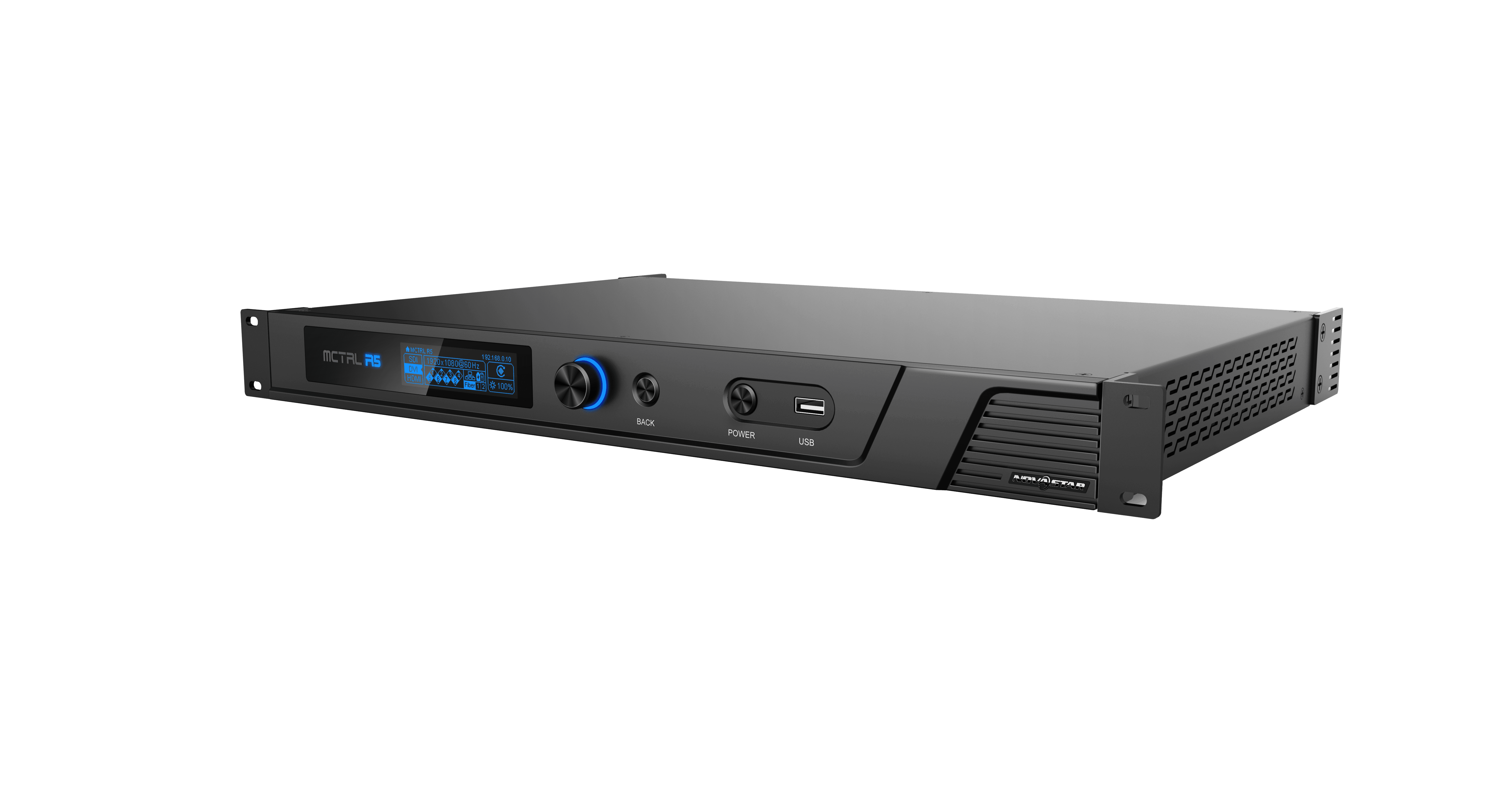

• Inputs:
• 1 × 6G-SDI
• 1 × dual link D-DVI
• 1 × HDMI 1.4
• Pixel capacity of each up to 4,140,000 pixels.
• Outputs:
• 8 × Gigabit Ethernet
• 2 × fiber optic outputs.
• Display rotation at any angle.
• Innovative architecture to enable smart configuration and shorter stage preparation time.
• NovaStar G4 engine to enable a stable and smooth display with good sense of depth and no flickering or scanning lines.
• Supports the new generation of NovaStar pixel level calibration technology, which is fast and efficient.
• Supports quick and easy manual adjustment of screen brightness.
• Supports firmware update via USB port on the front panel.
• Multiple controllers can be cascaded for uniform control..

• Supports HDR function, both in HDR10 and HLG standards, which can greatly enhance the image quality of the display, presenting more clear and vivid images.
• Supports individual Gamma adjustment for RGB when the bit depth of input source is 10-bit or 12-bit, which effectively controls image non-uniformity under low grayscale and white balance offset to improve image quality.
• Low latency: Less than 1 ms (when the start position of image is 0.)
• Supports 3D function when working with the 3D emitter EMT200 and 3D glasses,
• allowing you to experience 3D display effects.
• In multi-card mode, the MCTRL4K can be used as two controllers, allowing the images of two input sources to be displayed on the screen at the same time.

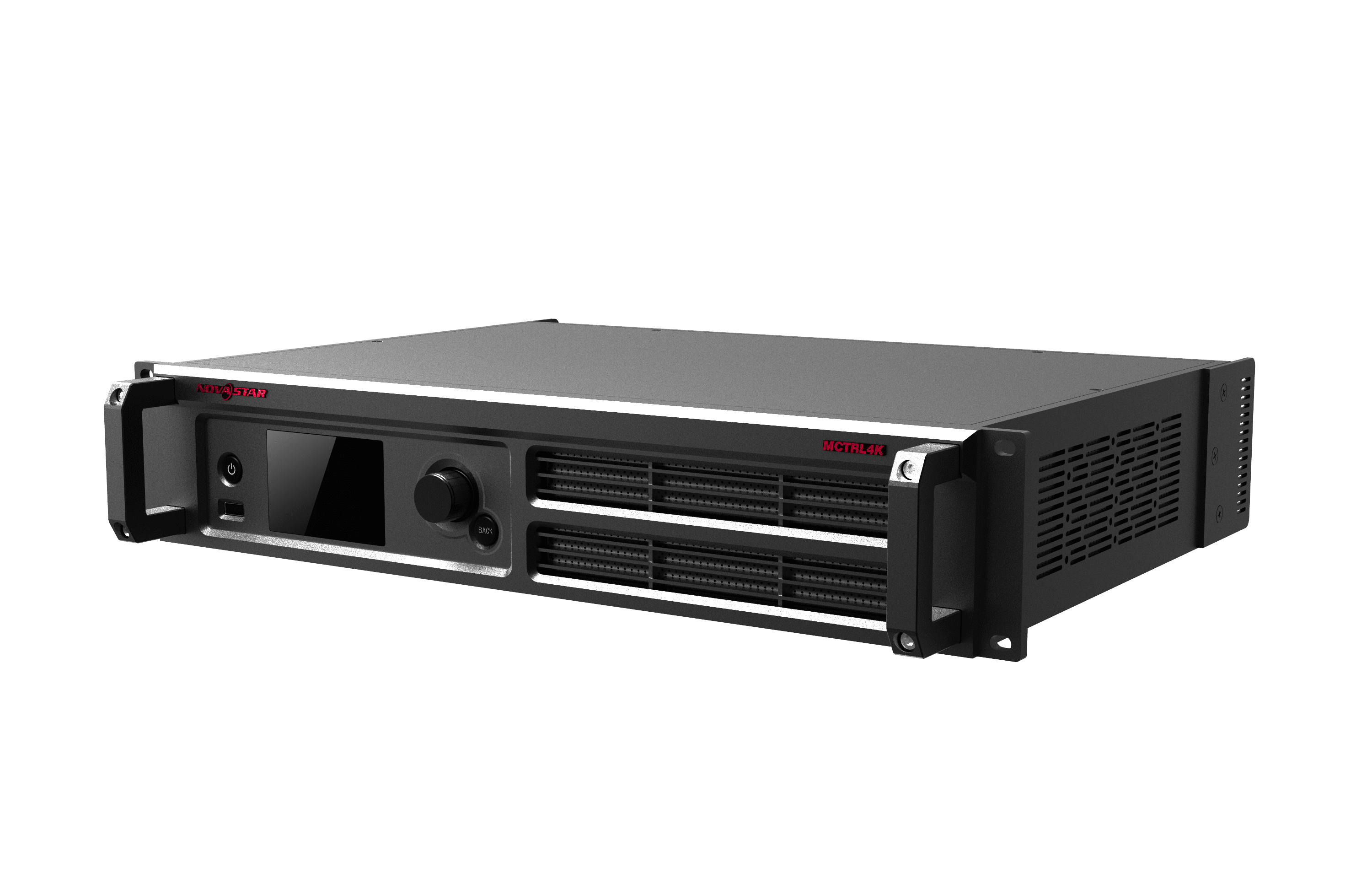

• 1 × DP 1.2 input and 1 × HDMI 2.0 input, resolutions up to 8.8 million pixels per input
• 2 ×D-DVI inputs, total resolutions up to 8.3 million pixels
• 16 ×Neutrik Gigabit Ethernet ports and 4 ×10G optical ports for output
• Supported video bit depths: 8-bit, 10-bit and 12-bit
• Supports both mosaic and multi-card working modes for dual-link DVI inputs.
• Supports HDR function, both in HDR10 and HLG standards.
• Supports individual Gamma adjustment for RGB when the bit depth of input source is 10-bit or 12-bit.
• Supports 3D function when working with the 3D emitter EMT200 and 3D glasses.
• Low latency: Less than 1 ms (when the start position of image is 0.)
• Supports ultra-high resolution settings with NVIDIA graphics card.
• Adaptive to inputs with decimal frame frequencies, including 23.98 / 29.97 /
• 47.95 / 59.94 / 71.93 / 119.88 Hz
• Supports the new generation of pixel level calibration technology of NovaStar.
• Supports screen configuration via Web interface.
• Multiple MCTRL4K units can be cascaded together for uniform control.
• Supports a variety of video formats.
