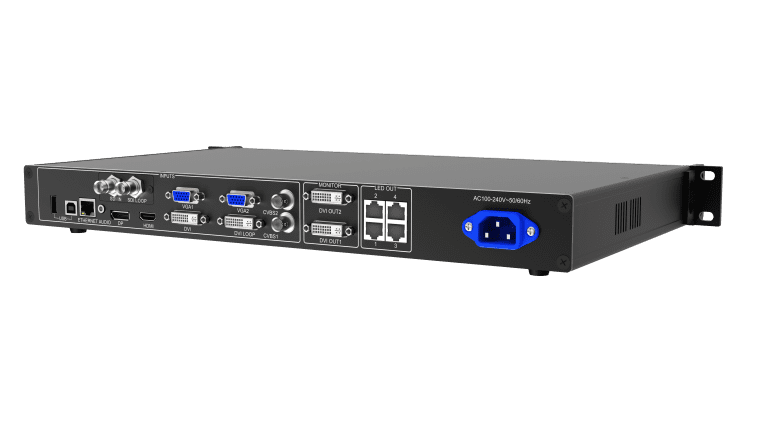

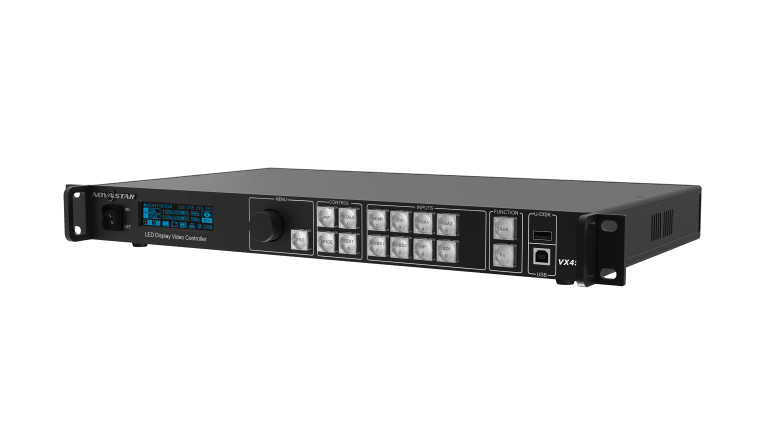

VX4S-N
All-in-One Contoller
CVBS / VGA / DVI / HDMI / DP / SDI
2,300,000 pixels
PIP, Auto fit
NovaStar’s all-in-one controllers integrate video processing and video control into one box.
CVBS / VGA / DVI / HDMI / DP / SDI
2,300,000 pixels
PIP, Auto fit
3G-SDI / HDMI / DVI / DVI+DVI Loop / USB
3,900,000 pixels
3 Layers, Switcher Mode, Auto fit, Director mode
7 input connectors

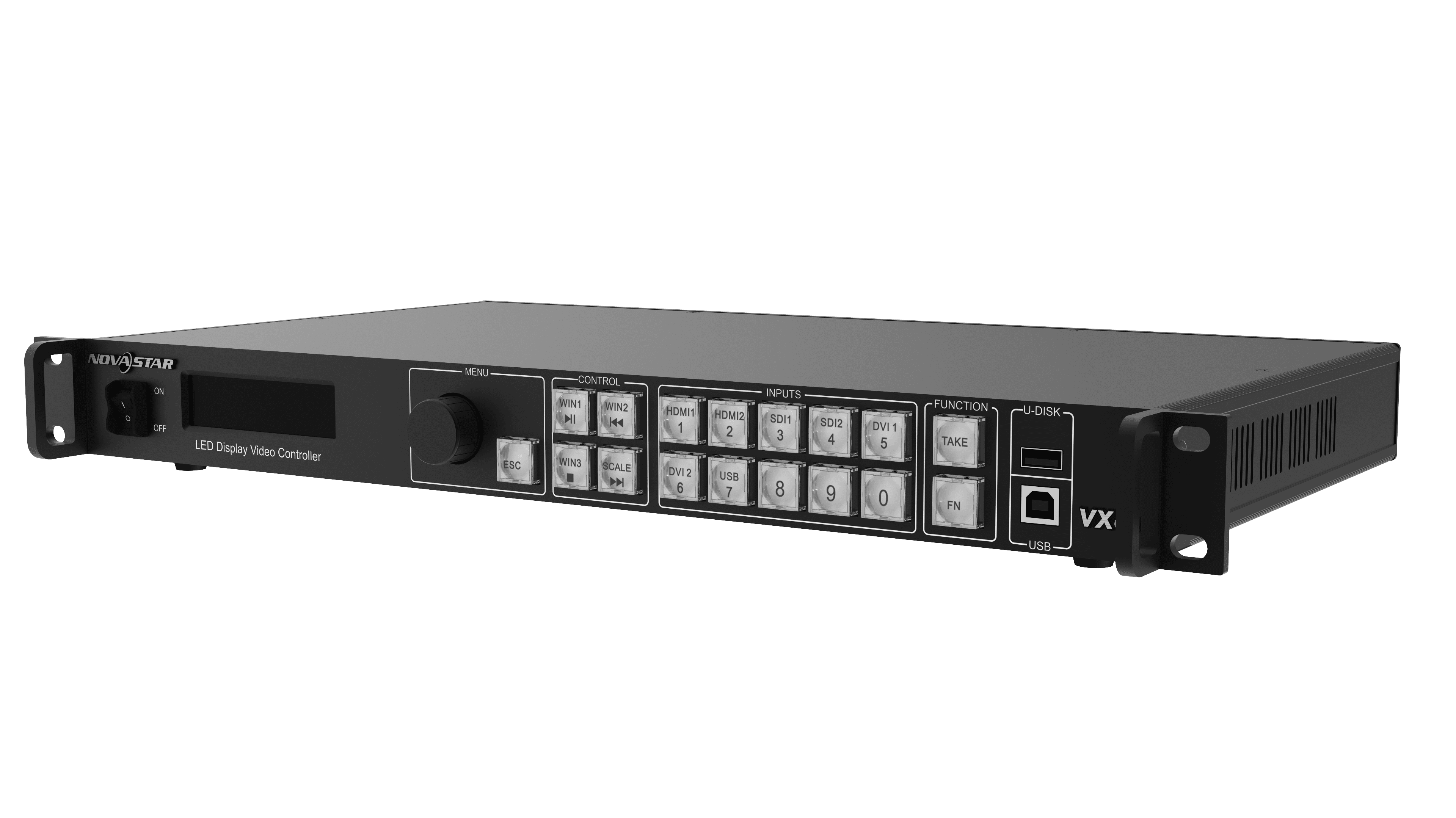

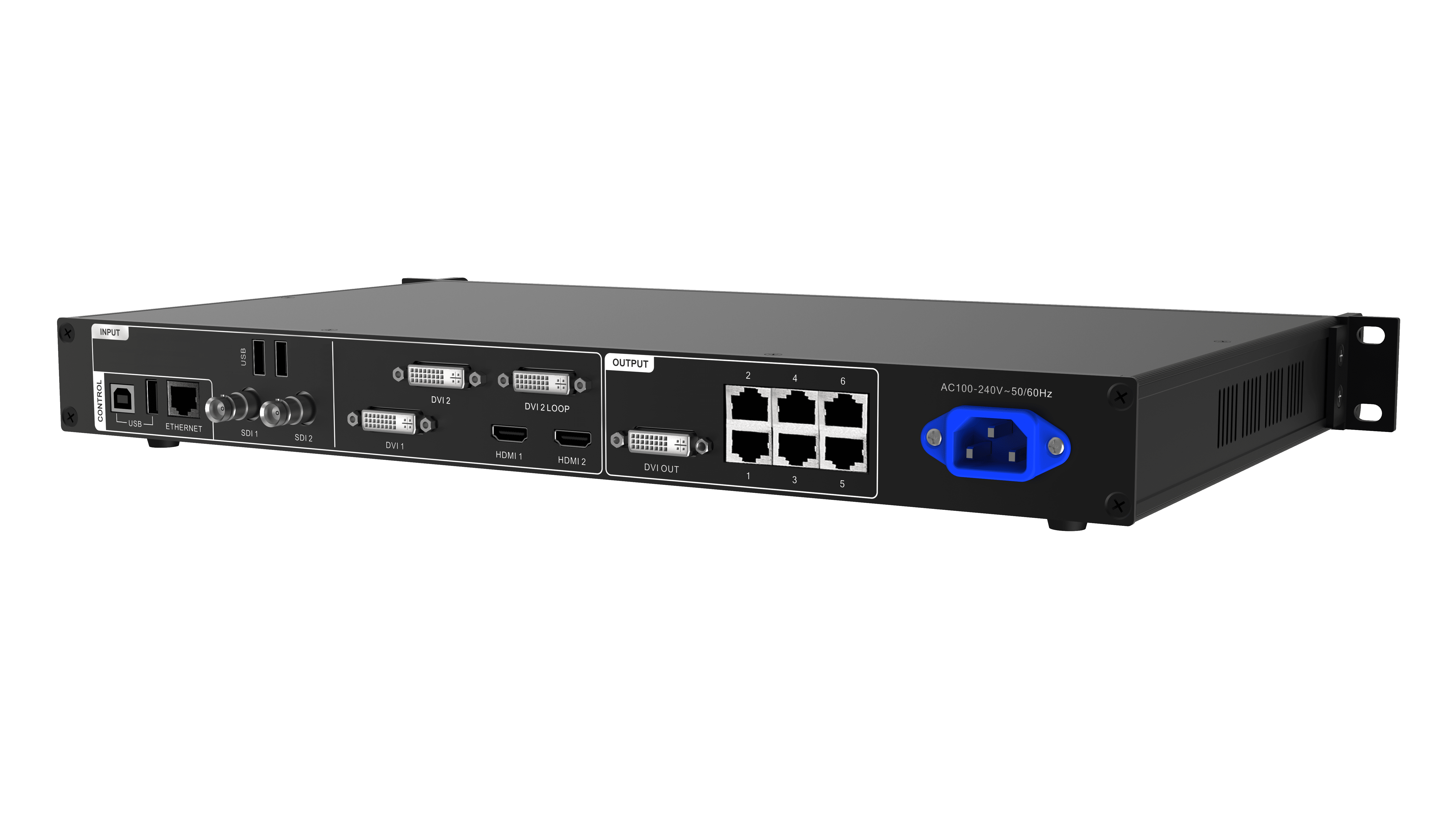

The VX6s is an all-in-one video controller that integrates 6 Gigabit Ethernet sending outputs, 3 layers and seamless switching functionality. The VX6s is designed with powerful video processing, switching and transmission capabilities.

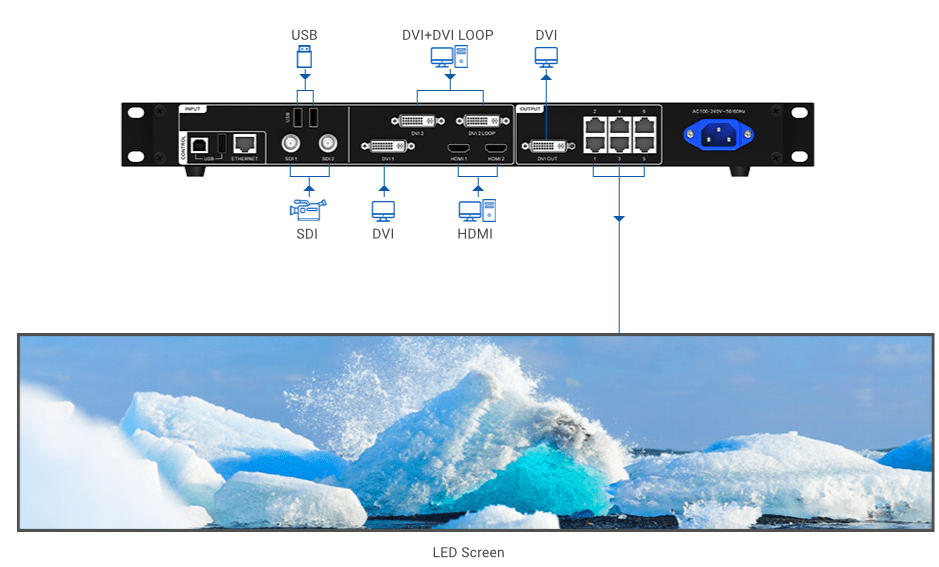

Including 2 × 3G-SDI, 2 × HDMI 1.3, 2 × DVI,
1 × DVI+DVI LOOP, and 1 × USB playback

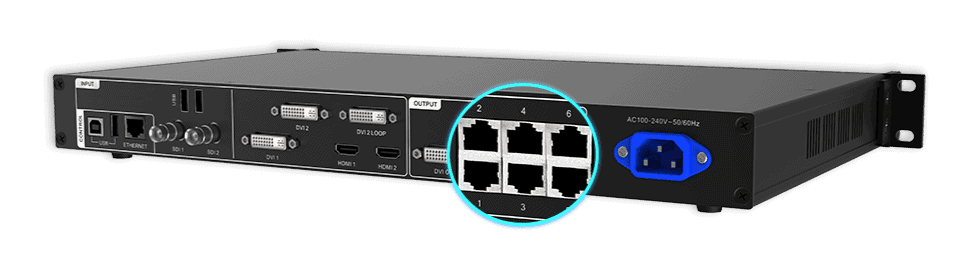

6 Gigabit Ethernet output
The maximum loading capacity high up to 3.9 million pixels
Maximum height or width can reach 4096 pixels
Multi VX6s units can be cascaded
Easy control
Supports V-Can, Smart LCT and Nova LCT-Mars
V-can
SmartLCT
Nova LCT-Mars

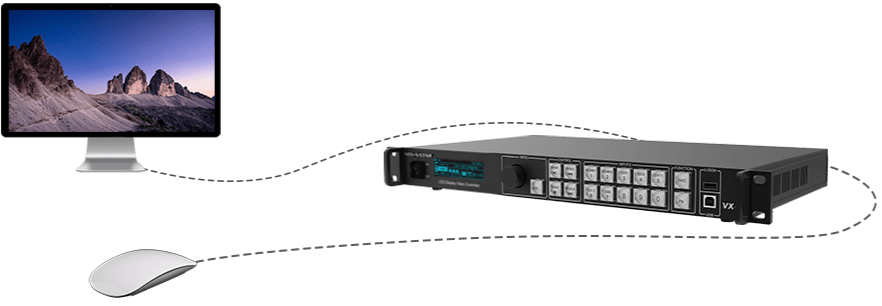

USB drive playback
USB playback can be intuitively controlled in real time
by connecting a mouse and monitor
The VX1000 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. It features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screen applications.
The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

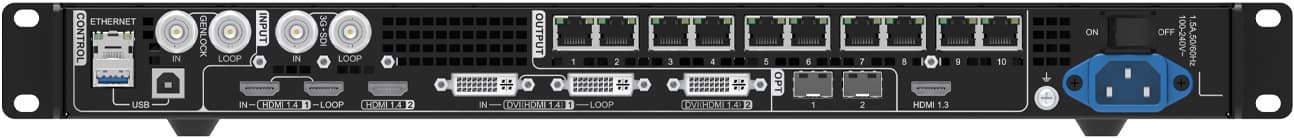

Input connectors
− 1x HDMI 1.4 (IN & LOOP)
− 1x HDMI 1.4
− 1x DVI (IN & LOOP)
− 1xDVI
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)
Output connectors
− 10x Gigabit Ethernet ports
A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs
OPT 1 copies the output on 10 Ethernet
ports.
OPT 2 copies or backs up the output on 10 Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output
Self-adaptive OPT 1 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
Audio input and output
− Audio input accompanied with HDMI input
source
− Audio output via a multifunction card
− Output volume adjustment supported
Low latency
Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
3x layers www.novastar.tech
− Adjustable layer size and position
− Adjustable layer priority Output synchronization
An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
Powerful video processing
− Based on SuperView III image quality processing technologies to provide step-less output scaling.
− One-click full screen display
− Free input cropping
Easy preset saving and loading
− Up to 10 user-defined presets supported
− Load a preset by simply pressing one button Multiple kinds of hot backup
− Backup between devices
− Backup between Ethernet ports
− Backup between input sources
Mosaic input source supported
The mosaic source is composed of several input
connectors of the same type.
Up to 4 units cascaded for image mosaic Three working modes
− Video Controller
− Fiber Converter − Bypass
All-round color adjustment
Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma
3D function
Work with the EMT200 3D emitter and matched
3D glasses to present a 3D visual experience.
Input and Output
– 10 Ethernet ports, with 6.5 million pixels capacity
– Optical ports output to CVT4K/CVT10﹣Four 4K×1K@60Hz input channels
– Support for input mosaic: HDMI, DVI, OPT
Multiple layers for creativity
– Support for 3 layers, with 10 presets
– All layers support 4K×1K, with opacity adjustment
– Main layer supports fade in and fade out switching
– One-button scaling of entire image, with support for SuperView III technology
Fully redundant operation for maximum stability
– Support for device backup
– Support for Ethernet port backup
– Support for input source backup
– Support for system configuration backup
Vast functionality for a superior user experience
– The computer connects to the first VX1000 by Ethernet for and cascades
to other VX1000 by USB cable.
– One device provides 3 working modes (Video Controller, ByPass, Fiber Converter)
– Ultra-low 1 frame latency
– 3D function

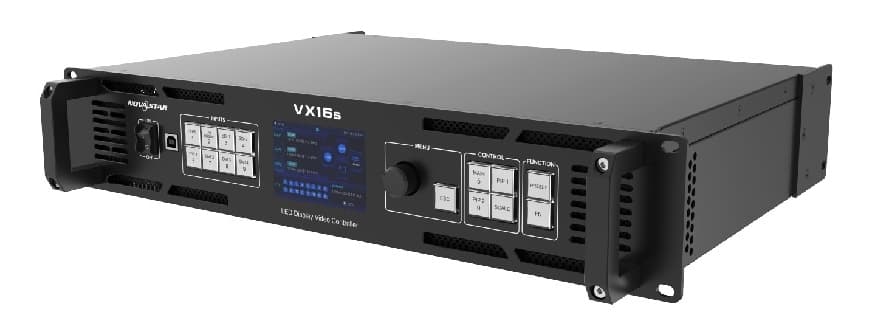

The VX16s is NovaStar’s new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit. Together with NovaStar’s V-Can video control software, it enables richer image mosaic effects and easier operations.
The VX16s supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.
Seamless Switcher, HDR10-Optima, Low Latency
HDMI / DP / DVI / 12G-SDI
10,400,000 pixels, 3 Layers + 1 BKG
Seamless Switcher, HDR10-Optima, Low Latency
12G-SDI / DP1.2 / HDMI2.0 / HDMI1.3
10,400,000 pixels, 6 Layers + 1 BKG + 1 LOGO+ 1 OSD
