OOH Series - Outdoor Fixed

Aluminum module chassis and panel frame accelerates heat dissipation. Air convection design helps air circulation inside the panel and keeps the balance of the air pressure inside the PSU. Heat sink design for module chassis and power supply unit improves heat dissipation considerably. White color frame can reflect the sunlight to reduce the heat generated in the panel.

LED Quote Request

OOH Series

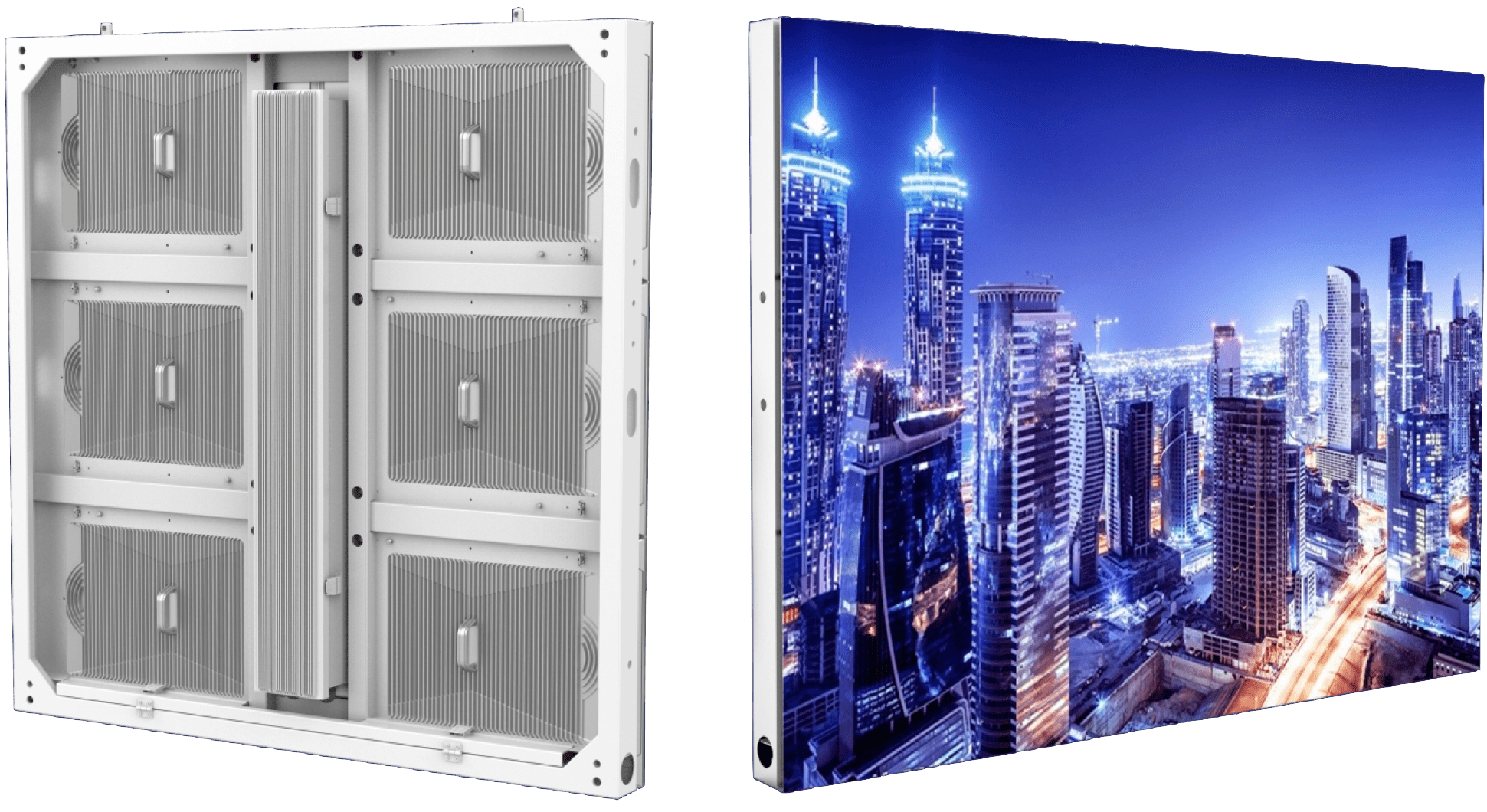

1:1 Ratio OUTDOOR HD Direct View LED

All Aluminum Module Design

For more than 15 years the staff at ATS-Professional has designed and built some of the most iconic indoor LED systems throughout the world with Pixel ranges from .83mm to 4mm in all sorts of sizes and shapes.

ATS-Professional is a direct designer and importer of OEM LED Panel designs. Our LED products are manufactured for ATS by some of the largest LED factories in the world.

We choose OEM factories based on the requirements of the project and each factory’s unique capabilities to provide the finest solution for our customers based on our Engineering Build Requirements and Design.

With decades of experience dealing in OEM manufacturing and our Un-matched internal Design and Engineering, ATS-Professional introduces our newest and most advanced line of indoor LED systems.

Every facet of the Design has been meticulously thought out. Mechanical Design, Visual Electronics, Installation, Reliability, Service and Support, Multiple Resolutions and Media Playback Systems to fit any budget.

Features

Exceptional Engineering - Heat Dissipation
Aluminum module chassis and panel frame accelerates heat dissipation.

Air convection design helps air circulation inside the panel and keeps the balance of the air pressure inside the PSU.

Heat sink design for module chassis and power supply unit improves heat dissipation considerably.

White color frame can reflect the sunlight to reduce the heat generated in the panel.

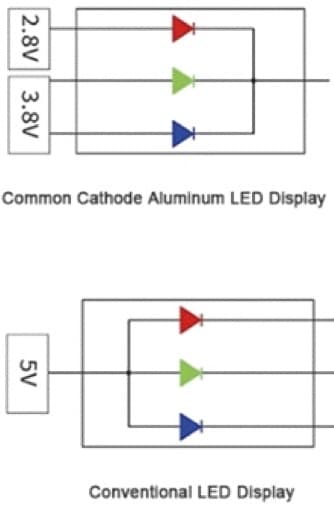

CCES Technology
CCES is abbreviate for Common Cathode Energy Saving technology.

Benefits:

Accurate electricity distribution for RGB LED chips to save energy and lower the power consumption by more than 30%.

Less heat generated from electrical components
prolongs the lifespan of the panel

With a lower temperature inside the panel, electrical components can work more stably to provide better video quality

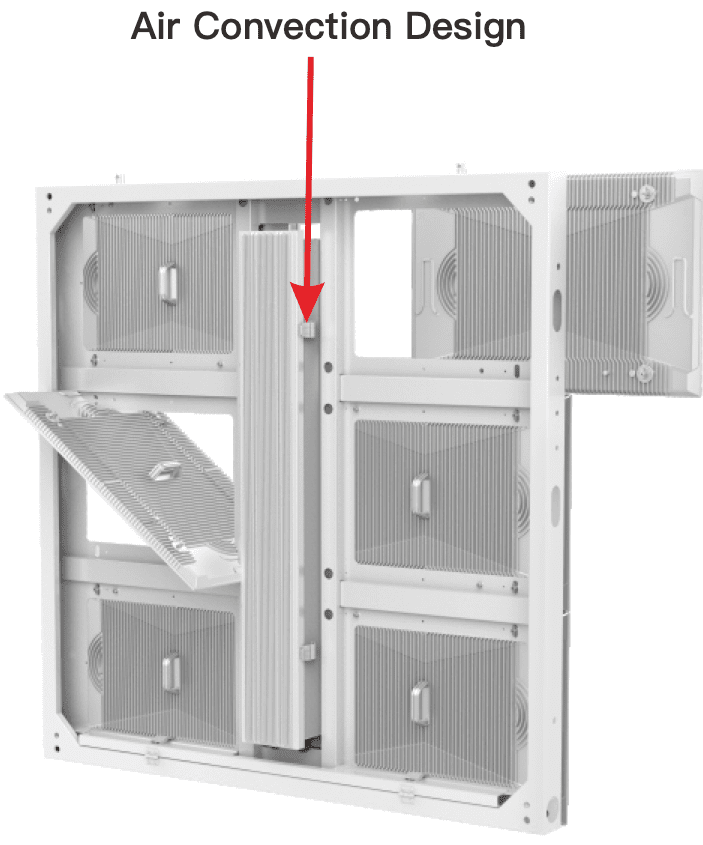

Air Convection Design for PSU
Aluminum module chassis and panel frame accelerates heat dissipation.

Air convection design helps air circulation inside the panel and keeps the balance of the air pressure inside the PSU.

Heat sink design for module chassis and power supply unit improves heat dissipation considerably.

White color frame can reflect the sunlight to reduce the heat generated in the panel.

Two heat dissipation hole at each flank of PSU can maintain the air pressure balance in the PSU, reducing water liquefied from steam inside when ambient temperature drops.

Water-proof Technology
Aluminum module chassis ensures the water proof ability of the module.

Water proof connectors are used for the hard connection between modules and panel frame.

Outdoor--rated power and data cables are covered at the bottom of the panel to provide stable transmission of electricity and data.

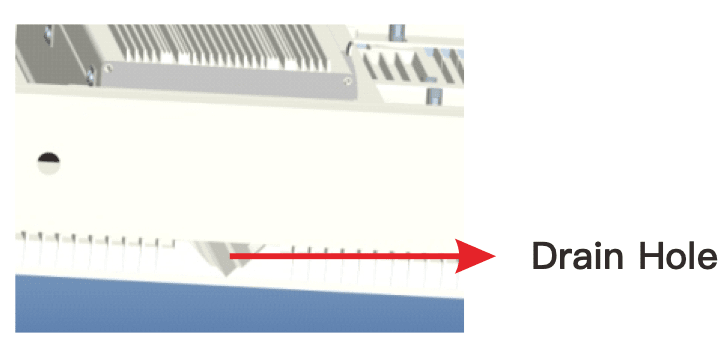

Drain hole is designed at the bottom of the panel to prevent ponding.

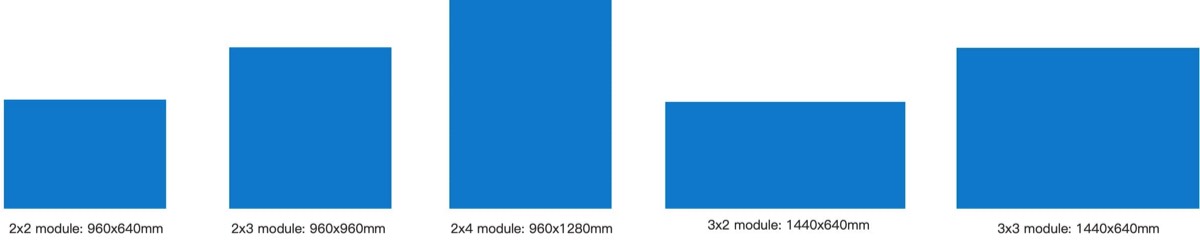

Aluminum Panel Frame
Different frame sizes to fit any project.

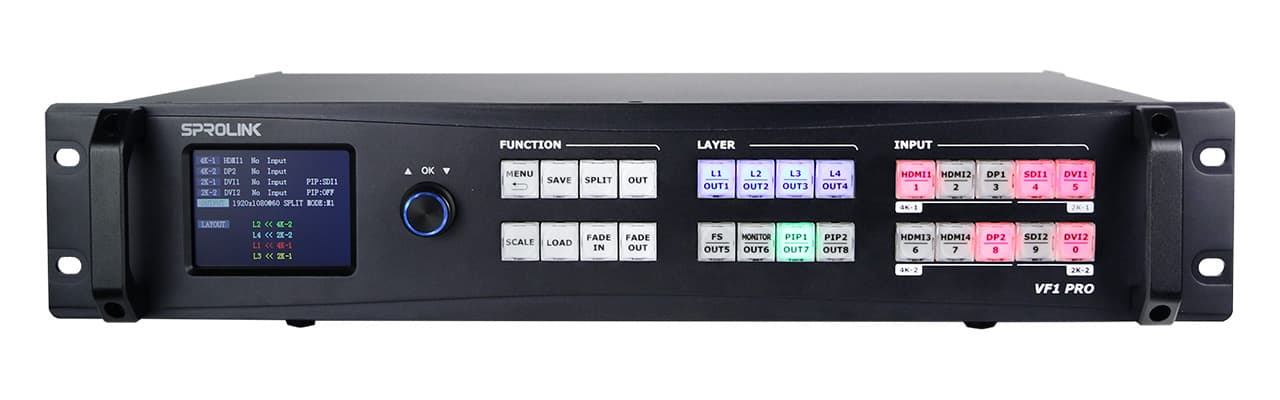

Sprolink Video Processors
Sprolink Video Processors enable multiple inputs, windows and layers, PIP Format Conversion and Scaling to all LED walls from 1080P up to 8K. Most LED Suppliers never think to add these important components, leaving their customers with an incomplete solution for most of their uses.

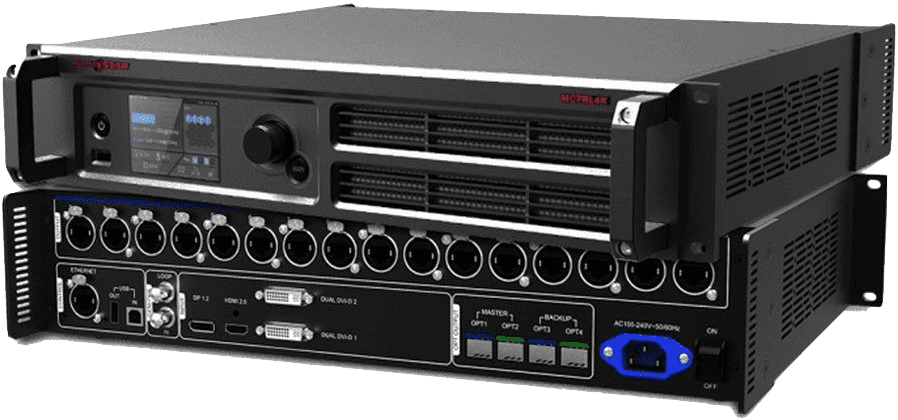

Novastar LED Processors and Graphics Cards
Novastar, is a global leading LED display solution provider, designing and developing LED display control solutions for a variety of market applications including entertainment, digital signage and rental.
