WB Cube Series

The WB Cube (Wafer Breeze Cube) Three or more panels can be assembled to achieve a 3D-corner. Panels can be arranged to create cubes and other creative 3D-shapes. Slim module design without housing allows for tighter gap control of no more than 1/8".

Overview Features Specifications Brochure
WB Cube Series
4 Sided Angles for Creative Designs...
The WB Cube (Wafer Breeze Cube) Three or more panels can be assembled to achieve a 3D-corner. Panels can be arranged to create cubes and other creative 3D-shapes. Slim module design without housing allows for tighter gap control of no more than 1/8".
ATS-Pro is the exclusive partner and distributor of Taylorleds in the United States and stocks thousands of Taylorleds products. For more than 15 years the staff at ATS-Pro has designed and built some of the most iconic indoor LED systems throughout the world. The Taylorleds product line are the finest LED panels we have ever worked with. Contact ATS-Pro and let us show you why? You will be glad you did.

Advanced Features

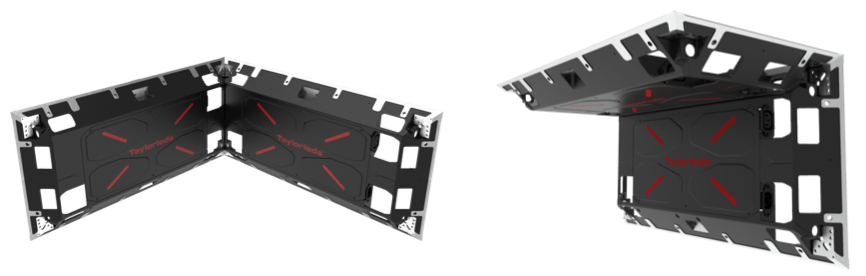

90° corners can be achieved in both directions. Create horizontal or vertical columns.
90° Splice - Left & Right 90° Corner - Up & Down 90° Corner

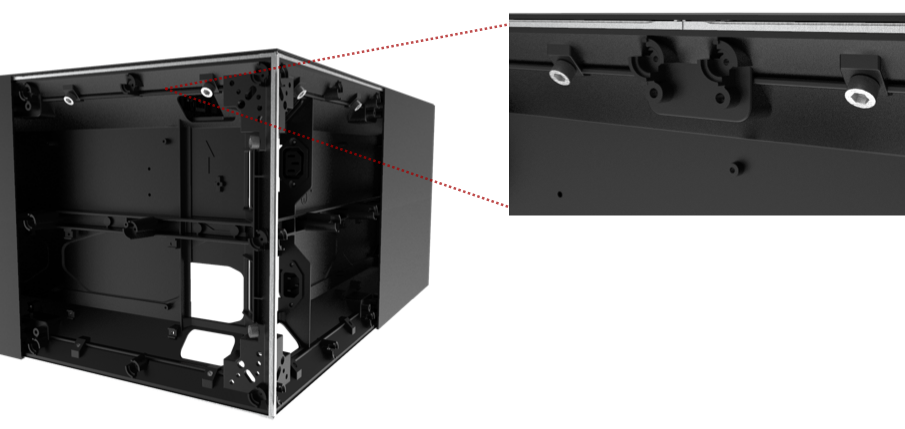

Easy to access hexagon screws for fast panel-to-panel connections.
Our slim module design without housing allows for tighter gap control. The space is limited to a single PCB’s thickness of 2.8mm (less than 1/8”).

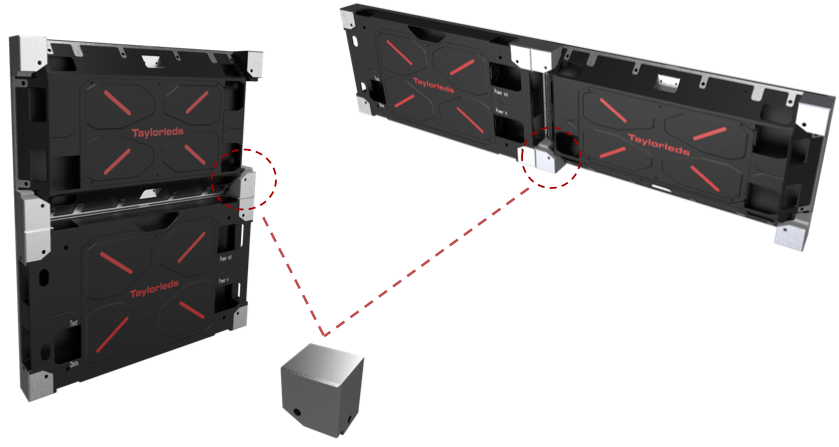

Aluminum blocks can be fixed to each corner of the WB CUBE panel. This allows for a transition to standard WB panels when curves lead into flat sections of displays.
